GTX Series
Straight Side Double Crank Presses
The GTX series punch press features extremely high rigidity, excellent precision, and a spacious bed surface.
It is suitable for continuous processing of material feeding, punching, forming, stretching, and can optionally be equipped with a moving cart for quick die change purposes.
This machine model is especially suitable for stamping processes in the automotive, motorcycle, hardware, and home appliance industries.
Wet type clutch & brake | Preset counter, 6 digits |
Punch press controller (PLC + color HMI)
| Maintenance counter, 4 digits (unit: 10K) |
Operation mode selection off / Inching / Safety one stroke / Continuous | Life counter, 10 digits |
Hydraulic overload protector(H.O.L.P) | Electronic rotary cam switch (6 spare channel) |
Overrun detecter (brake monitor) | Air ejector, 3/8" (one chanel) |
Motorized grease pump | Air source receptacle, 3/8” (two channel) |
Dual-coiled solenoid valve | Misfeed detection circuits |
Floor standing electric control cabinet | Flywheel safety guard |
Motorized slide adjusment | Portable 2-hand pushbutton t-stand |
Digital die height indicator (unit: 0.1mm) | Inverter & main motor reversing circuit |
total counter, 6 digits |
|
Pneumaric Die cushion | Anti-vibration mechanical feet press mount |
Photoelectric safety device | Quick die change system (Q.D.C.S.) |
Upper slide knockout device | Anchor bolts & Foundation plates |
Flywheel brake device | Automatic feed equipment |
Safety die block with plug | Power receptacle ( single phase 110V or 220V ) |
Dual valve solenoid with detector | Intelligent forming produtivity management system |
Misfeed detection | Misfeed detection circuits |
-
-
-

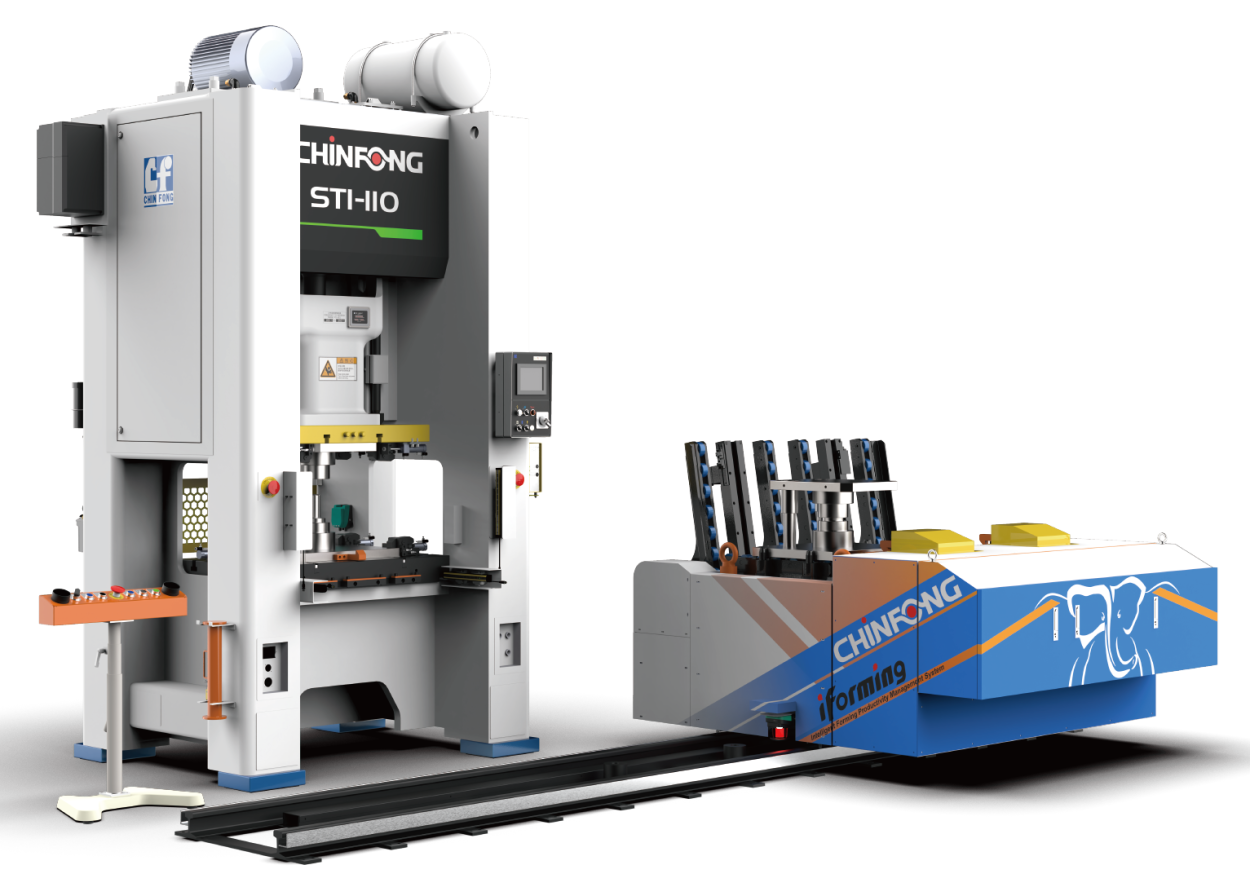

ST1 series + trolley
Straight column type single crankshaft precision punch press + trolley
It can be widely used in forging processes such as drawing, bending, engraving, flattening and trimming, and can perform single-action or continuous stamping.
-
-
-
