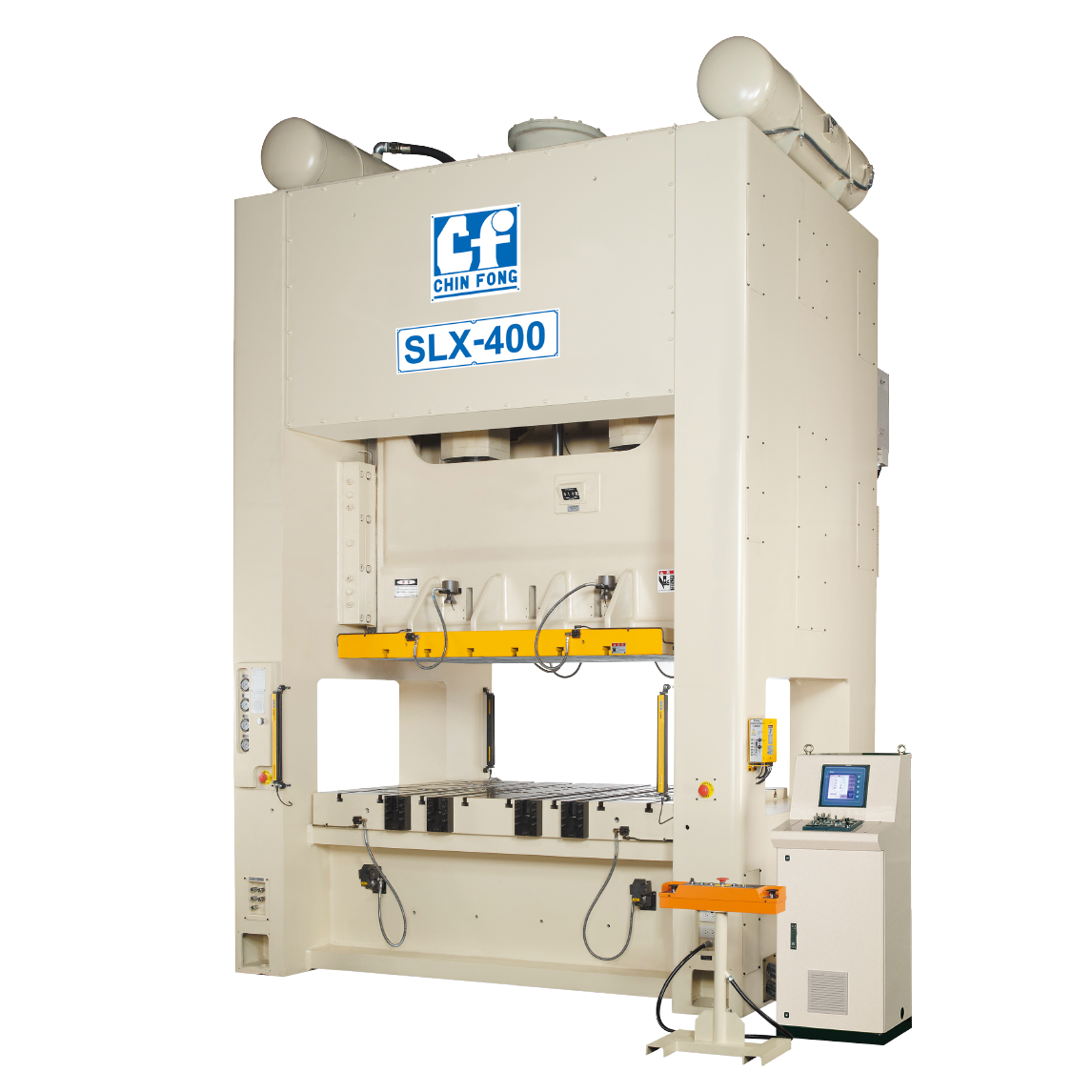

The SLX series press is designed for structural optimization, significantly improving the precision of stamped products and extending the lifespan of molds.
Featuring an integral welded frame, it completely eliminates internal stress and provides a high-rigidity press.
| Standard Accessories | |
| Wet-type clutch and brake | 6-digit preset counter |
| Press controller (PLC + human-machine interface) • Electronic crankshaft angle indicator • Electronic operating speed indicator • Operation status LCD monitor |
4-digit maintenance counter (in ten thousands) |
| Operating mode selection Single / Inch / Safety single cycle / Continuous |
Service life counter 10 digits |
| Hydraulic overload protection device | Electronic rotary cam switch with 6 presets |
| Second fall protection device | Air blow device 3/8" one circuit |
| Dual electromagnetic valve | Air source connector 3/8" two circuits |
| Electric slider adjustment device | Misfeed detection circuit |
| Independent control box | Power socket 110V single-phase (customer-supplied) |
| Digital die height indicator (0.1mm) | Flywheel protective cover |
| Electric grease lubrication device | Inverter and main motor forward/reverse device |
| 6-digit cumulative counter | |
| Optional Accessories | |
| Die electrical device | Flywheel brake device |
| Photoelectric safety device | Anti-vibration mechanical feet |
| Slider upper material feeding device | Quick die change device |
| Main motor reverse device | Base screws and base plate |
| Safety block and safety pin | Automatic feeding device |
| Dual solenoid valve with misfeed detection | |
