Cold forging press

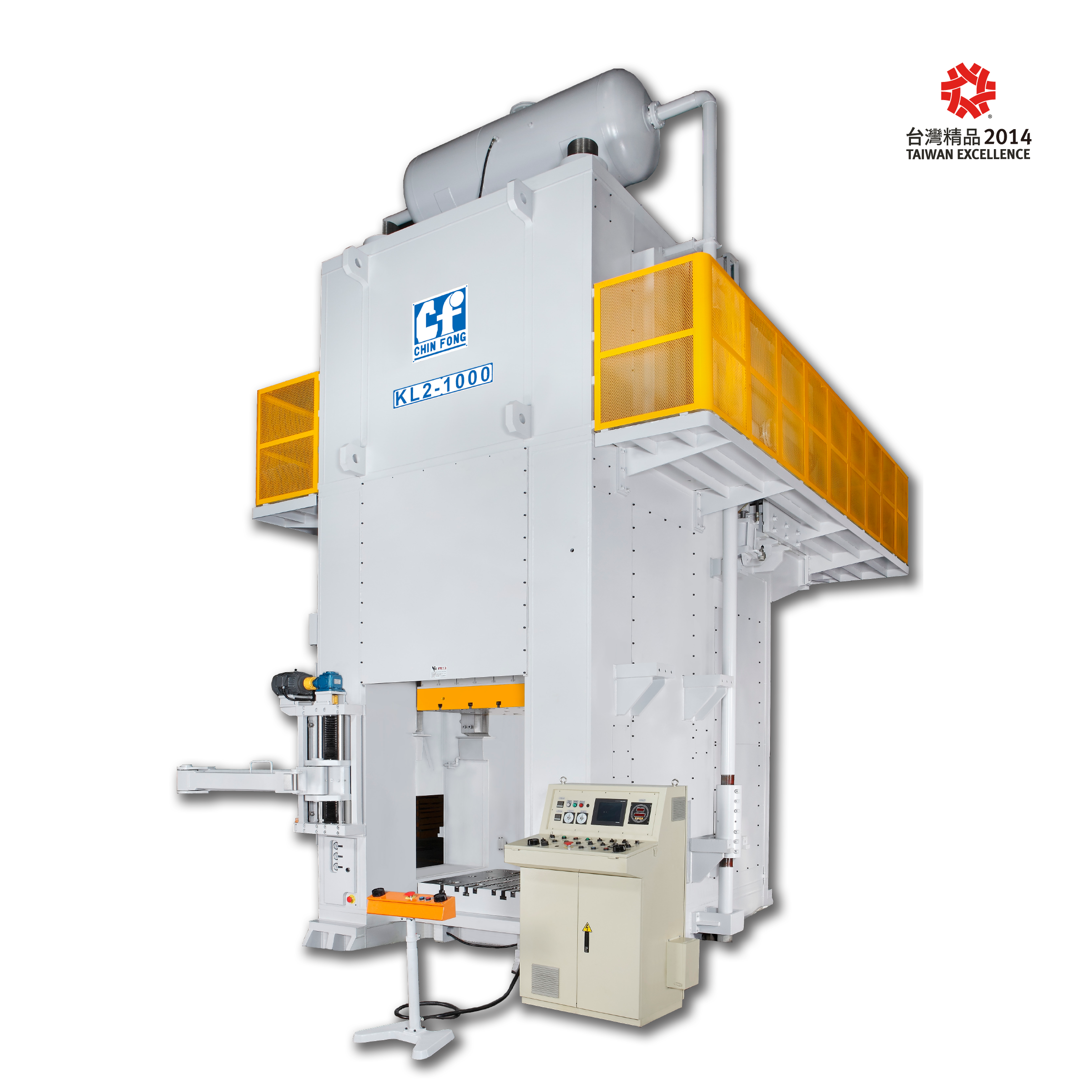

KL2 Series
Knuckle-Joint Link Drive 2 Point Cold Forging Presses
The KL2 Series press is mainly used for cold forging processing of longer shaped workpieces.
Application
Bicycle Main Forging Parts
Automobile Sheet Metal
Automotive Parts
TFT-LCD Panels
New Energy
The KL2 Series press is mainly used for cold forging processing of longer shaped workpieces and is suitable for processing automotive and motorcycle parts, ironware, hand tools, gears, and engine components.
- High rigidity and high precision construction
- Superb eccentric load capacity
- Safe and quickly responsive die detachment device
- Durable and reliable operation
- Excellent operability and maintainability
- High transmission torque clutch and brake
| Standard Accessories | |
| Slide and die balance device | Misfeed detection dual solenoid valve |
| Centralized circulation lubrication oiling device | Safety guard and safety ladder |
| Second-stroke protection device | Air blow joint (3/8") |
| Load detection (safety) device | Air source joint (3/8") |
| Programmable Logic Controller (PLC) | Maintenance tools and toolbox |
| Electronic cam switch (prepared for 8 pairs) | Operating instructions and precision inspection |
| Digital mold height indicator | T-shaped worktable |
| Optional Accessories | |
| Flywheel brake device | Foot switch |
| Photoelectric safety device | Die illumination light |
| Upper slide material feeder | Power socket 110V / 220V single phase (customer supplied) |
| Lower slide material feeder | Shock absorber |
| Quick-change mechanical arm for punches | Human-Machine Interface (HMI) |
| Electric grease lubrication device | Foundation screws and foundation plate |
| Electric slide adjustment device (with hydraulic locking) | Quick die change device |
| Inverter motor (main motor) | Automatic feeding device |
