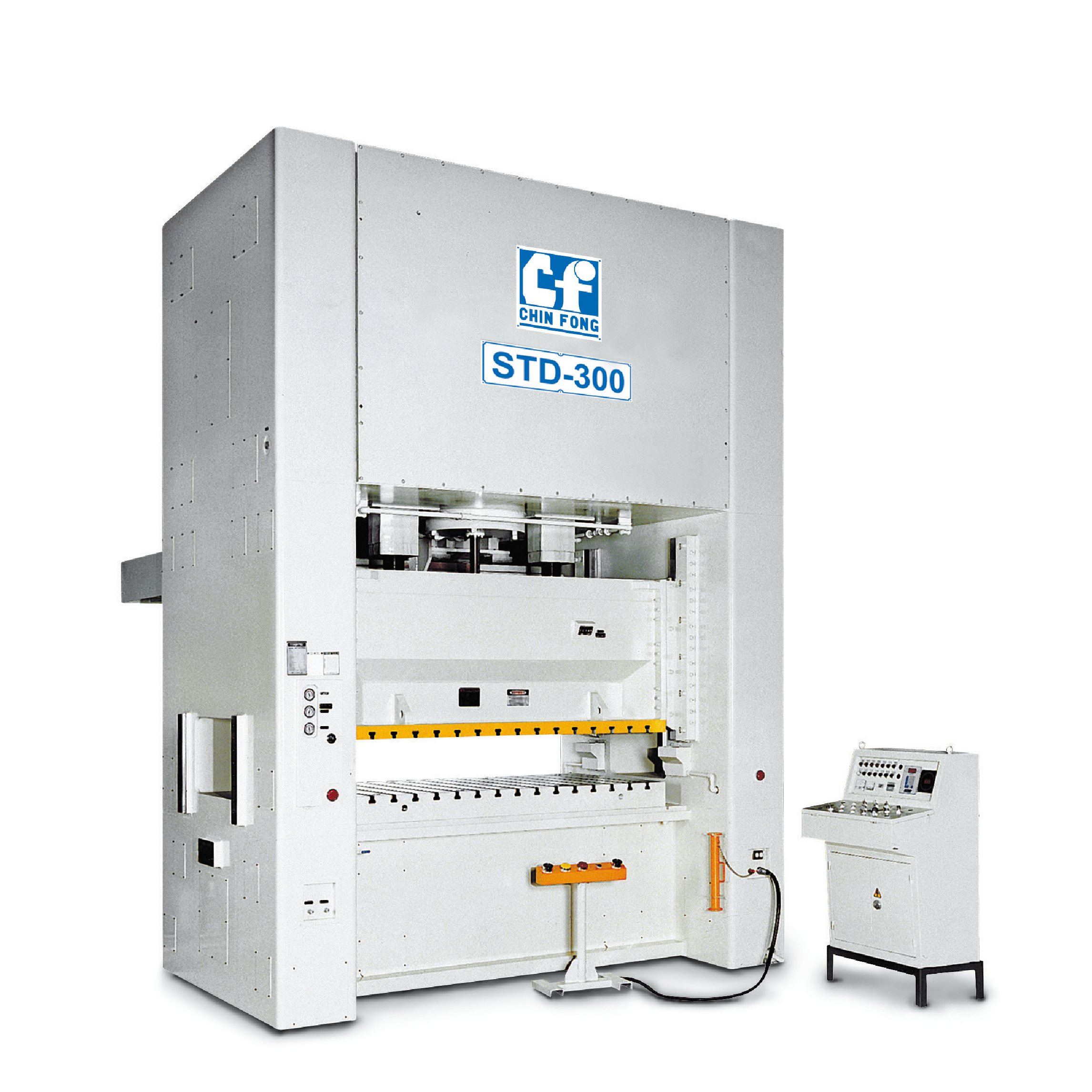

Heavy-duty precision press
STD Series
Straight Side Double Crank Power Presses
The machine body of the STD Series press features extremely high rigidity, excellent precision, and a larger bed surface.
Application
Bicycle Main Forging Parts
Automobile Sheet Metal
Automotive Parts
TFT-LCD Panels
New Energy
It is suitable for continuous processing of progressive die stamping, punching, forming, drawing, and other processes. Optional installation of a mobile bolster is available for quick die change purposes. This press is particularly well-suited for stamping processes in industries such as automotive, motorcycle, hardware, and home appliances.
- Unified transmission torque strength
- Ultra-high rigidity bed
- Diverse transmission structure
| Standard Accessories | |
| Press controller PLC | Second-stroke protection device |
| Hydraulic overload protection device | Power socket 110V / 220V single phase (customer supplied) |
| Electric slide adjustment device | T-shaped worktable |
| Digital mold height indicator (unit: 0.1mm) | Air source joint |
| slide and die balance device | Air blow joint |
| Electronic rotary cam switch (prepared for 6 pairs) | Independent electrical control box |
| - Electronic crank angle indicator / Pre-set counter (6 digits each) | Misfeed detection circuit (with metal socket) |
| Centralized circulation lubrication oiling device | |
| Optional Accessories | |
| Upper slide material feeder | Shock absorber |
| Pneumatic cushion | Electronic rotary cam switch expansion module (16 pairs each) |
| cushion bore cover | Foundation screws and Foundation plate |
| Load indicator | Quick die change device |
| Die illumination light | Peripheral automation equipment |
| Photoelectric safety device | Intelligent forming productivity management system |
| safety block and safety plug | |
