Servo press

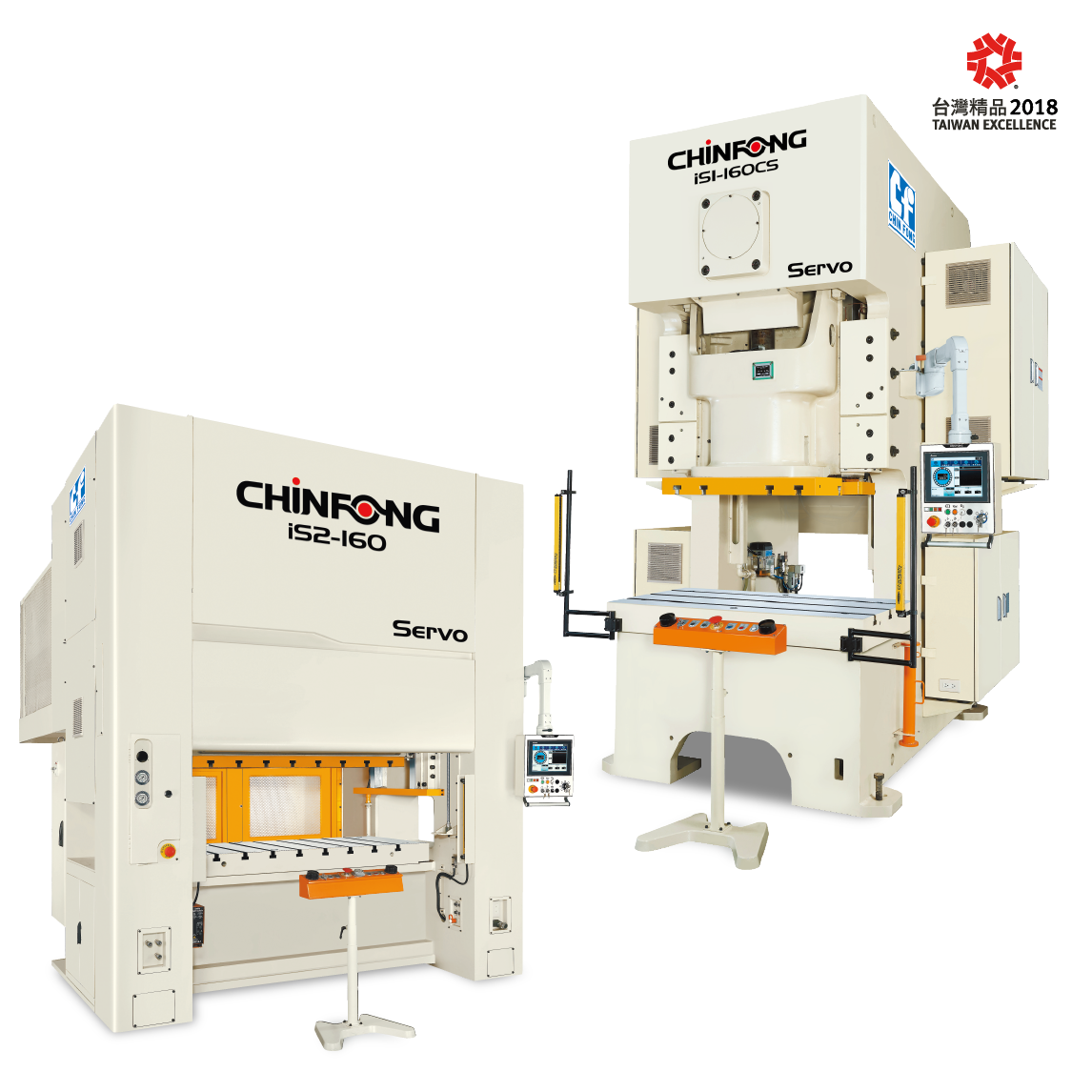

iS1/2 Series
Straight Side Single Crank Direct Drive Servo Press
Application
Bicycle Main Forging Parts
Automobile Sheet Metal
Automotive Parts
TFT-LCD Panels
New Energy
- The iS1/2 series offers the freedom to set different speed profiles for slide motion, meeting diverse stamping conditions.
- It allows the flexible configuration of forming actions (motions) to accommodate special shapes and material forming requirements.
- During processing, the ability to set holding time contributes to improved extrusion forming,
- while also addressing material springback in bending and supporting compound processing.
| Standard Functions Accessories | |
|
Operation Mode Selection Off / Inching / Safety One Stroke / Continuous |
Electronic Rotary Cam Switch ( 6 spare channel) |
| Safety Brake System | Misfeed Detection Consent |
| Hydraulic Overload Protection Device (H.O.L.P) | Digital Die Height Indicator (Unit:0.1mm) |
| Motorized Slide Adjustment Device | Overrun Detecter |
| Motorized Grease Pump | Air Ejector |
| Circulating Forced Oil Lubrication Device | Air Source Receptacle |
| Slide and Die Balance Device | Portable 2-hand Pushbutton T-stand |
| Servo Control System + HMI Operator Panel | Safety Block with Plug |
| Energy Storage Device | |
| Optional Function Accessories | |
| Penumatic Die Cushion | Die Area Light |
| Die Pin-hole Tap | Air Ejector (Additional) |
| Extended Module of Electronic Rotary Cam Switch (8 spare channel) | Air Source Receptacle (Additional) |
| Slide Knock-out Device | Automation Peripherals |
| Automatic Slide Adjustment Device | Quick Die Change System |
| Safety Light Curtain | Electrical Hand Wheel |
| Power Receptacle (Single phase, 110V/220V power sourec wiring by user) | HMI Load Monitor |
| Anti-Vibration Press Mounts | Intelligent Forming Produtivity Management System |
